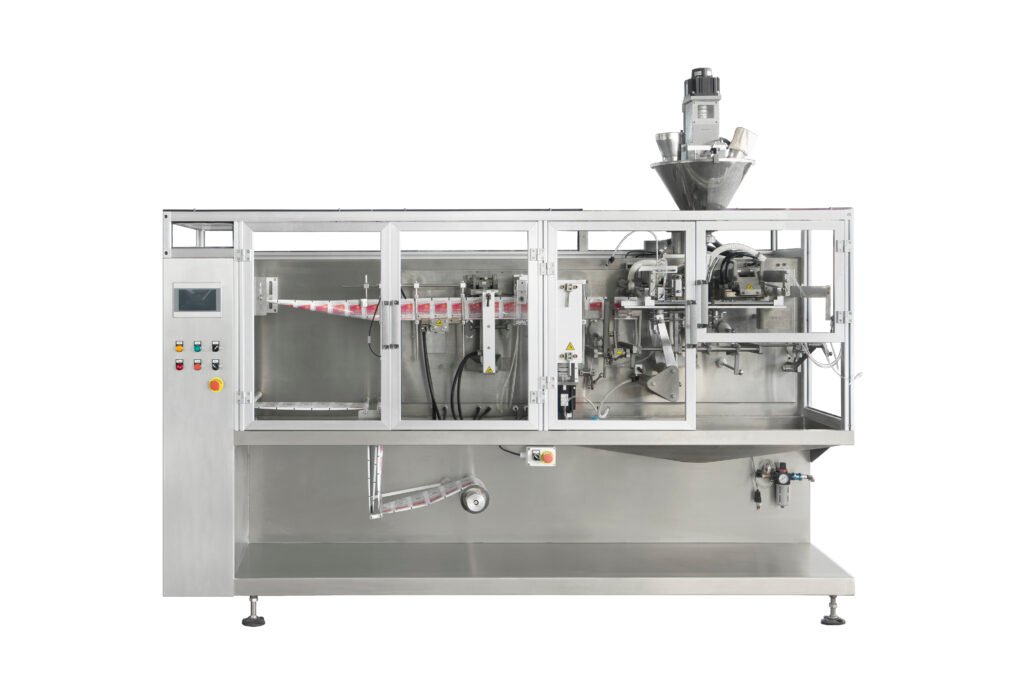

Automatic Horizontal Conditment Chili Powder Flat Pouch Sachet Packing Machine
Premium Quality
Packaging Machine

Automatic Horizontal Conditment Chili Powder Flat Pouch Sachet Packing Machine

Model: HS-130
Standard Features: HS Equipment Introduction HS is a compact horizontal form-fill-seal (HFFS) integrated packaging machine. It is primarily designed for small pouch filling applications. By selecting different filling devices, it...
80
Packages/Min
6.5kW
Power Rating

Product Gallery

Technical Specifications

Detailed specifications and features of this advanced packaging machine

Performance

Packaging Speed 80 packages/min
Bag Size Range W:60-140mm L:80*200mm80
Filling Range 100ml
Metering Method Auger Filler

Technical Details

Voltage AC 220V/50Hz
Power 6.5 kW
Dimensions 2800*1200*2000mm
Weight 998 kg

Packaging Types

Horizontal Flow Wrap - HFFS

Materials

Granules (Puffed food, nuts, sugar)
Powder (Flour, milk powder, seasoning)
Liquid/Paste (Beverages, soy sauce, shampoo)

Features

Date/Batch Code Printing
Gas Flushing (Nitrogen, CO2)
Hole Punching Device
Easy Tear Notch Device
Automatic Film Tracking Correction
Remote Monitoring/Diagnosis
Fault Alarm System
Quick Bag Former Changeover

Product Overview

Standard Features:

HS Equipment Introduction

HS is a compact horizontal form-fill-seal (HFFS) integrated packaging machine. It is primarily designed for small pouch filling applications. By selecting different filling devices, it can package a wide range of products, including coffee, milk powder, sugar, salt, and sauces. Additionally, this machine is widely used in the cosmetics industry for packaging creams, lotions, and hair wax.
It offers multiple filling options, with a maximum speed of up to 120 pouches per minute.
This high-speed small pouch packaging equipment adopts a space-saving compact design. Its carefully selected components support 24/7 continuous production operation, with minimal maintenance costs. It can also be upgraded to a two-station cutting mode. This makes it an ideal choice when equipment budgets are limited. The equipment features an integrated cabinet and an independent operation panel, with the electrical control system integrated into the machine frame. Mitsubishi is used as the standard control system, and alternative brands such as Siemens are also available upon request.

Specification of HS Pouch Machine Series Equipment

Equipment mode HS130 HS130TS HS160 HS160D
Mini bag size(mm) 60×80 60×80 60*80 60+60×80
Max bag size(mm) 140×200 140×200 180*200 90+90×180
Bag volume range 100ml 100ml 400ml 200ml
Production  speed PPM 80 50 80 100
Film size range Maximum diameter 350 mm, core diameter 76 mm
Power Consumption 6.5KW 7.5KW 8.0KW 8.5KW



Quality Certifications

CE Certification
ISO 9001
