Product Introduction

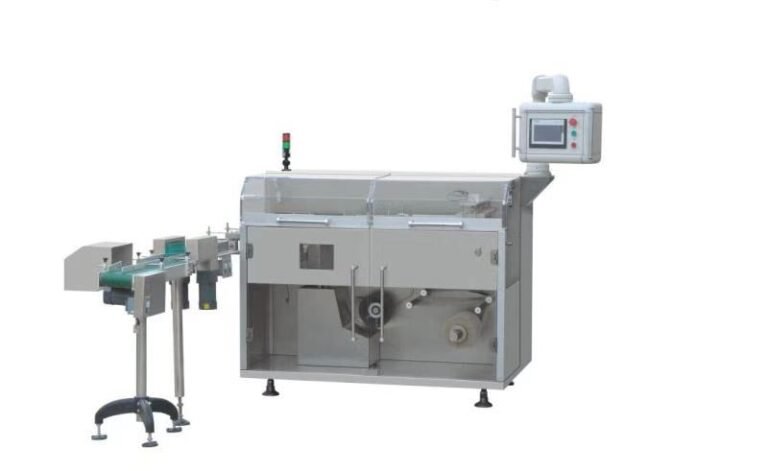

The TMB-400 series fully automatic transparent film three-dimensional packaging machine is suitable for industries such as pharmaceuticals, health products, food, cosmetics, and tobacco. It can be used as a cluster packaging machine for small boxes and can replace medium-sized boxes. It is particularly suitable for pharmaceuticals and health products that require high-quality packaging, making it an ideal next-generation packaging machine. Transparent film packaging technology is one of the most advanced packaging methods on the market.
Our TMB-400 series fully automatic transparent film three-dimensional packaging machine is highly popular among new and existing customers for its high speed and stable performance.
Main Features
- Fully automatic feeding, conveying, stacking, film wrapping, forming, sealing, and counting.
- This machine can be used independently or integrated with a laser coder, cartoner, or other equipment to form an automated production line.
- Angle-folding packaging enhances packaging quality and improves the anti-counterfeiting capabilities of the packaged items.
- During the packaging process, the machine automatically starts when a small box is supplied and automatically stops when no small boxes are supplied.
- Simple operation allows for different packaging styles to be customized, and the size can be adjusted within the packaging range.
- Measuring instruments and meters comply with legal measurement units.
- This machine features a compact structure, advanced performance, stable operation, high efficiency, energy saving, and stepless speed regulation.
Technical Parameters
| Speed：10-35 bags/min | |
| Packing sizse：L(400-80)×W(280-50)×H(120-30)(mm) | |
| Packaging material: BOPP cigarette film PVC | Inner hole diameter：75mm |
| Thickness：0.021-0.028mm | Width: can be selected according to the packaging size |
| Sealing temperature：100-150℃ | Voltage：3P 50HZ/AC380V |
| Working air pressure：≥0.3MPa | Noise：<75dB(A) |
| Total power：3.5KW | Weight：About 1000kg |
| Dimension：2050-1170-1850mm | |
