Description:

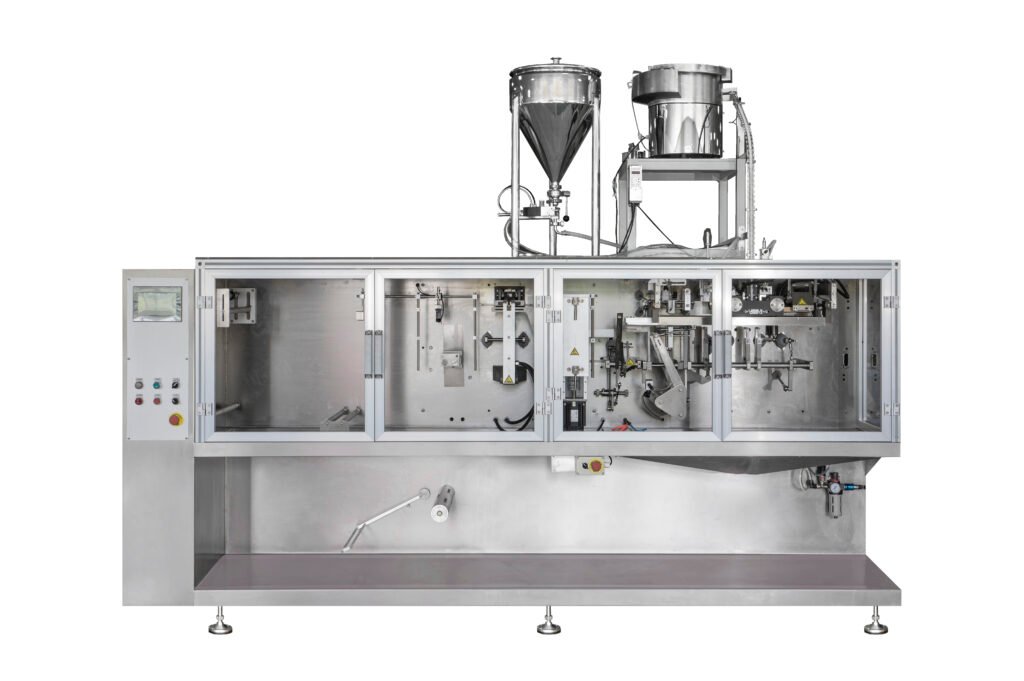

The HS is a compact, horizontal forming, filling, and sealing integrated packaging machine. It is specifically designed for small bag filling applications, offering versatility in packaging liquids, pastes, sauces, and more. The machine is widely used in the cosmetic industry for packaging products like creams, lotions, and hair wax.
With a wide range of filling options, the HS can achieve speeds of up to 70 bags per minute. Its high-speed performance and space-efficient design make it an ideal solution for small bag packaging needs. The machine is built for continuous 24-hour operation with minimal maintenance costs, making it a cost-effective option for businesses with budget constraints. Additionally, it can be upgraded to a two-station cutting mode to further enhance efficiency.

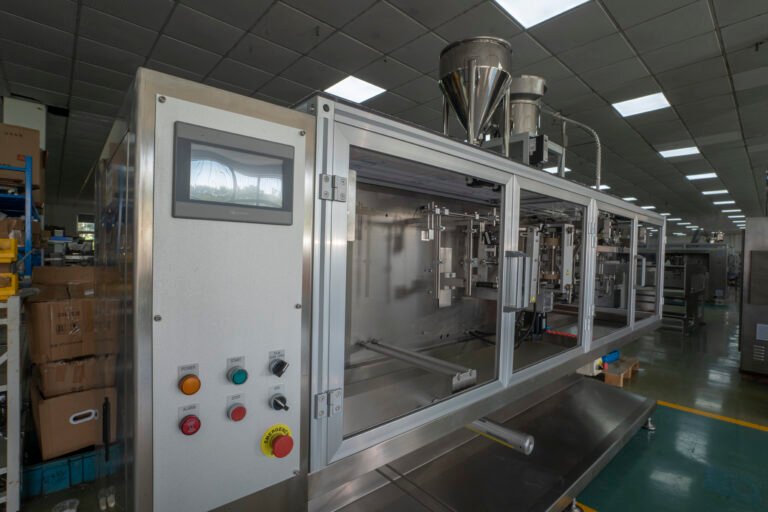

The HS features an integrated control cabinet and an independent operation panel, with electrical components housed within the frame for easy access and maintenance. It comes with a Mitsubishi standard control system, though customers can also opt for Siemens or other renowned brands for the control system.
List of HS Pouch Machine Series Equipment:
| Equipment mode | HS130 | HS160TS | HS160 | HS160D |
| Mini bag size(mm) | 60×80 | 60×80 | 60*80 | 60+60×80 |
| Max bag size(mm) | 140×200 | 140×200 | 180*200 | 90+90×180 |
| Bag volume range | 100ml | 100ml | 400ml | 200ml |
| Production speed PPM | 80 | 50 | 80 | 100 |
| Film size range | Maximum diameter 350 mm, core diameter 76 mm | |||
| Power Consumption | 6.5KW | 7.5KW | 8.0KW | 8.5KW |
