Products Description
Wet Tissue Packing Machine is generally suitable for industries such as medicine, sanitary materials, and catering. Such as drug patch, disinfection cotton towels, disinfection paper towels, toilet paper towels, fragrant napkins and other product packaging. This type of wet tissue packing machine usually has vertical and horizontal automatic folding, printing, technology and other functions. Four-side sealing bag type, the finished product is flat and beautiful.
Parameters

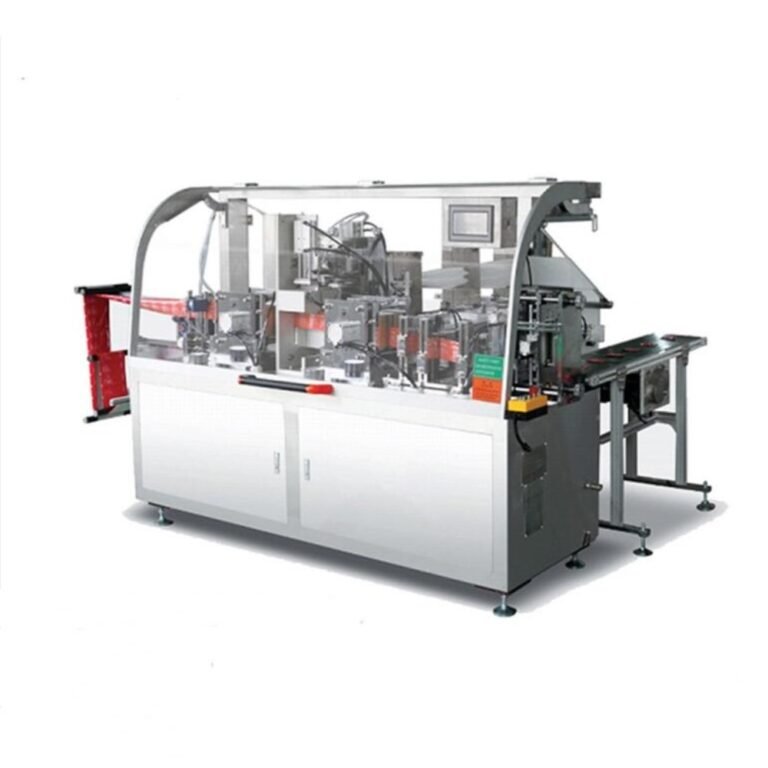

| Item/model | Model:VPD250–Dwet wipe making machine for single piece |
| Schets dimension | Horizontal Four-side sealing/ three side sealing |
| Packing specification | Length: 50mm-145mm width:50mm -90mm
Ps: the bag size is adjustable, change size no need to change the molds |
| Wrapping materials | Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film. |

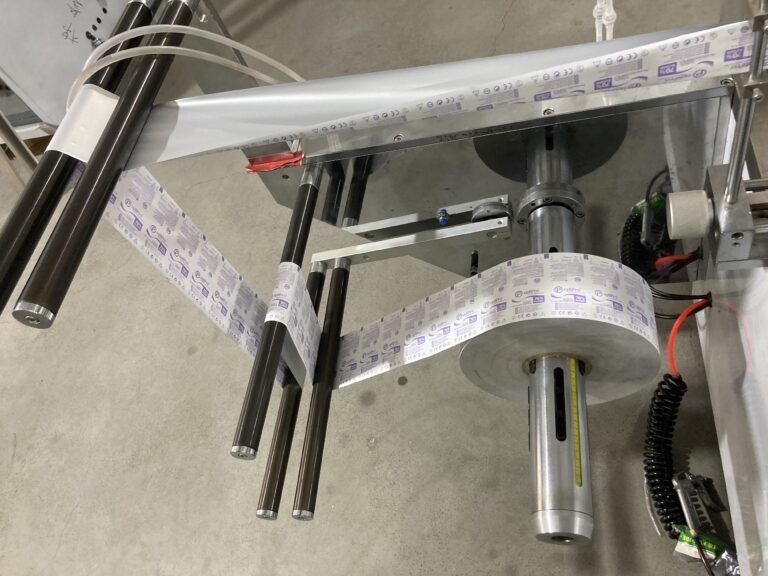

| Max.ext. dia & Int.diameter | Max exterior diamater of film 350mm , Internal diameter 75mm ; |
| Wet Tissue Material | 30-80g/m2 air laid paper, nonwoven, spun lace nonwoven fabric etc |
| Max.ext. dia & Int.diameter | Max exterior diamater 1000mm, Internal diameter 75mm ; |

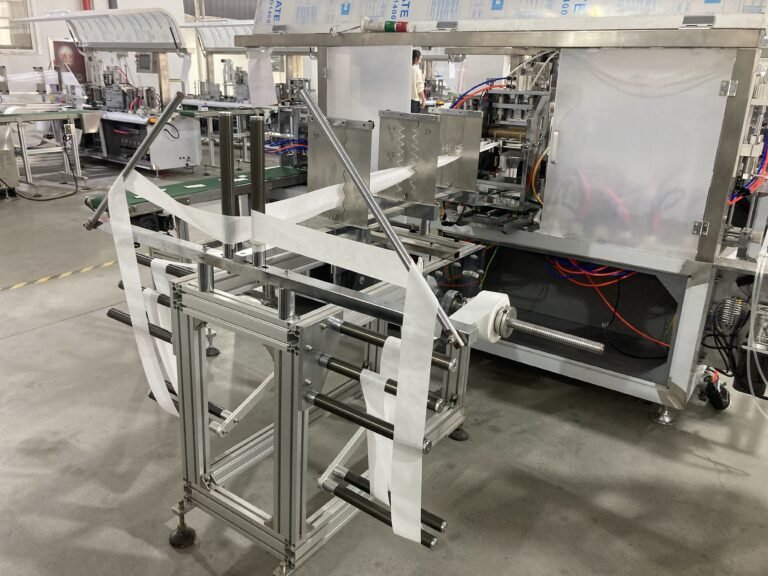

| Folding way | Max 10 folding vertical, and 4 folding horizontal |
| Inner size(unfold tissue) | Length: 40mm-220mm width:30mm -240mm |
| Packing speed | 80-130 bags/mins |
| Up to XX bags/min according to the type of product,the sachet dimensions and the type of quality of wrapping film. To be confirmed after tests | |
| Liquid added range | 0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)] |
| Installed power | 10KW (total power about 2.8KW) |
| Power supply type | Single phase two wires 220V/ Three phase four wires 380V 50/60Hz |
| Machine finishing | Stainless Steel |
| Control panel | Colour touch-screen (Language On request) |
| Output | Packing arm will collect the products and put it onto the conveyor, the desired number of the stacks,it can be adjusted and set on the control panel. |
| Machine noise | ≤64.9dB(A) |
| Air supply | 0.6-1.0 Mpas |
| Air consumption | 300-500L/min(w-1.0/10 air compression machine is needed) |
| Machine dimensions | L2800×W2800×H1800mm |
| Machine weight | 1200Kg |
| Package size | Plywood cases 3160*1080*1700mm one case only |

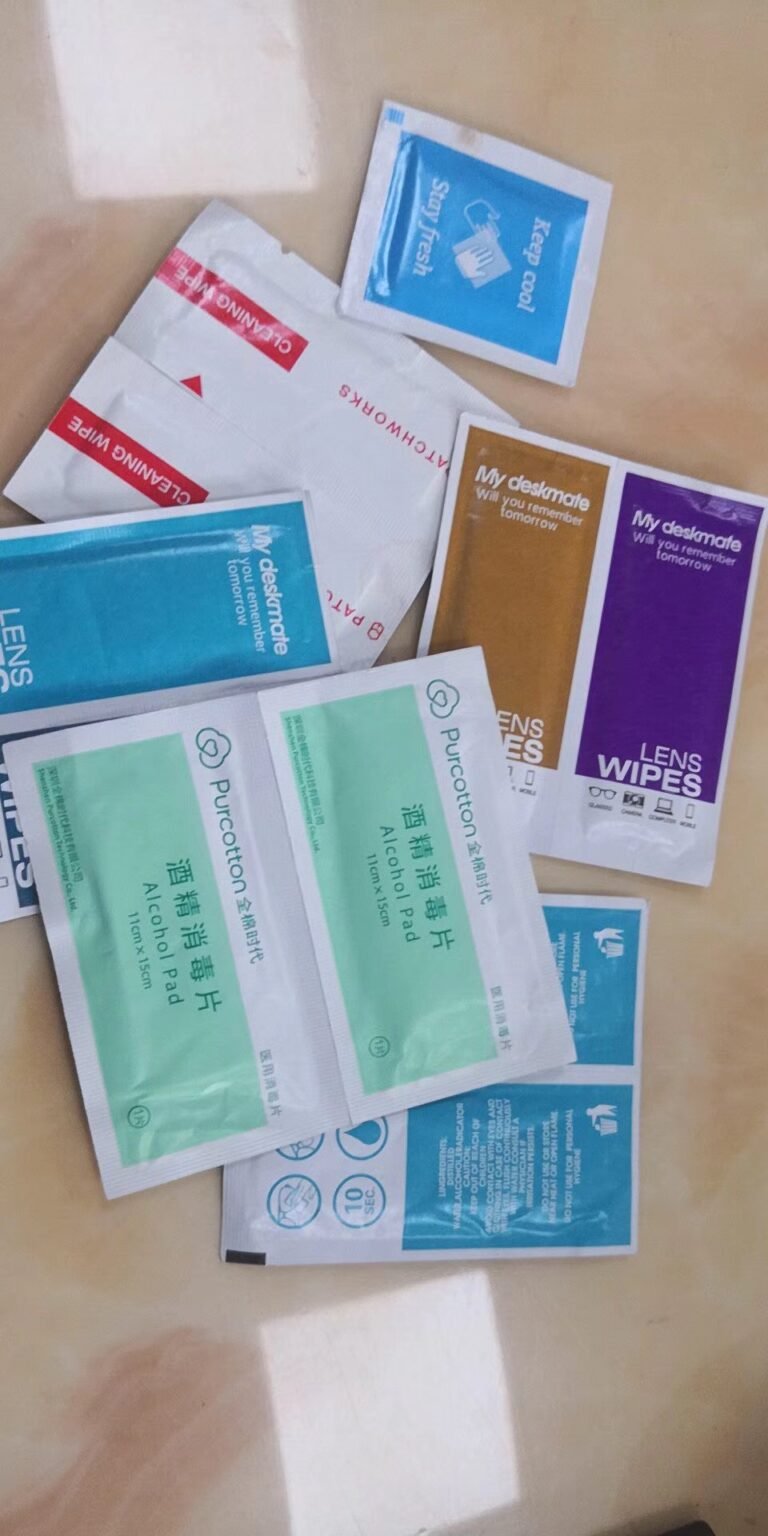

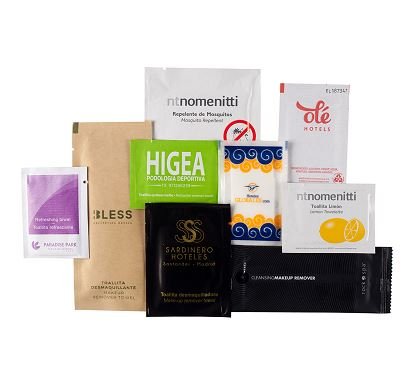

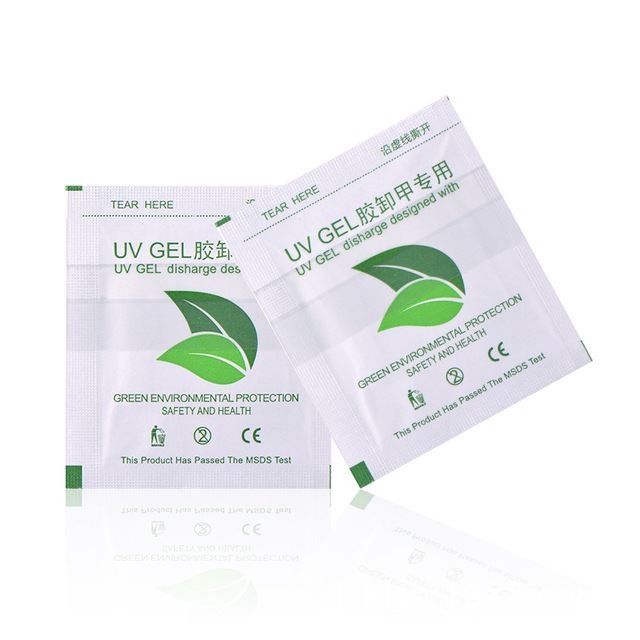

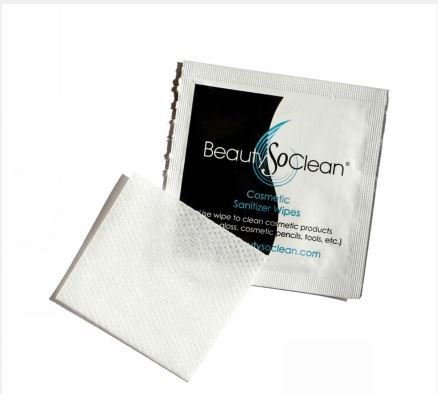

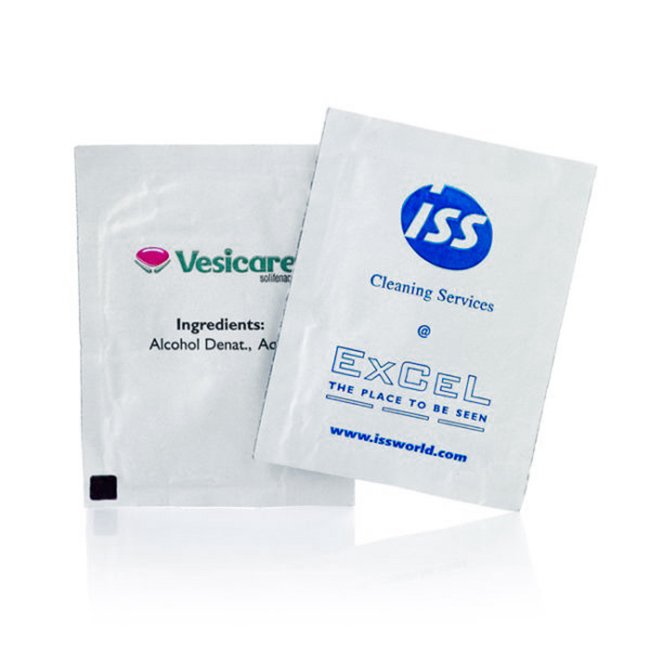

Sample Display

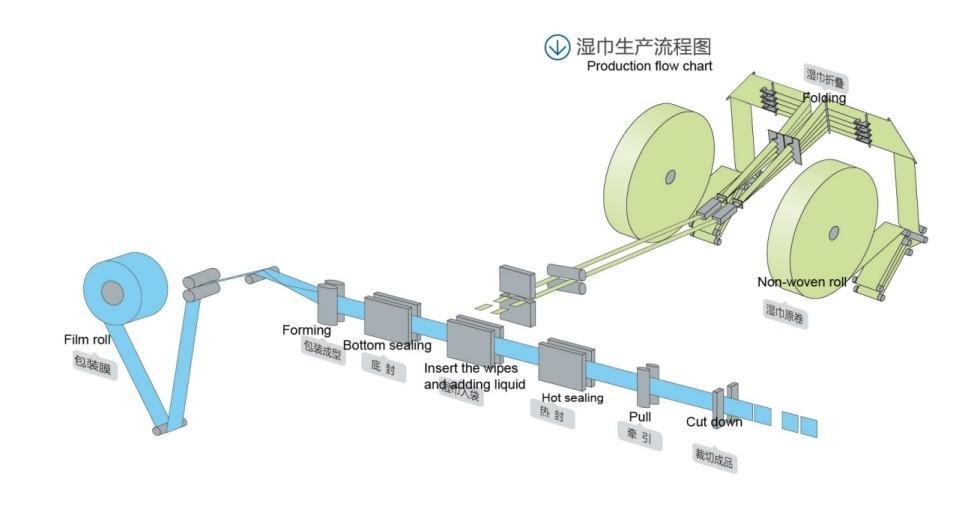

Operating Principle
Our Factory
WenZhou Trustar Machinery Technology Co.,Ltd
WenZhou Trustar Machinery Technology Co.,Ltd is located in Ruian, Wenzhou, the capital of packaging and printing. The factory covers an area of about 7000 square meters and the office building area is about 2500 square meters. We have complete product testing equipment and production and processing equipment. It is exported to more than 20 countries abroad and has after-sales points in the local area, with an annual output of 2,500 units. At present, the company’s product series, capsule filling machine, blister packaging machine, cartoning machine, etc. According to the market demand, the demand for the wet tissue machine is large. Later, the was developed and the customer received the machine unanimously. Our machine parts are purchased and processed by ourselves, to ensure that the quality of the products can be guaranteed in every link.
