- Machine Brief

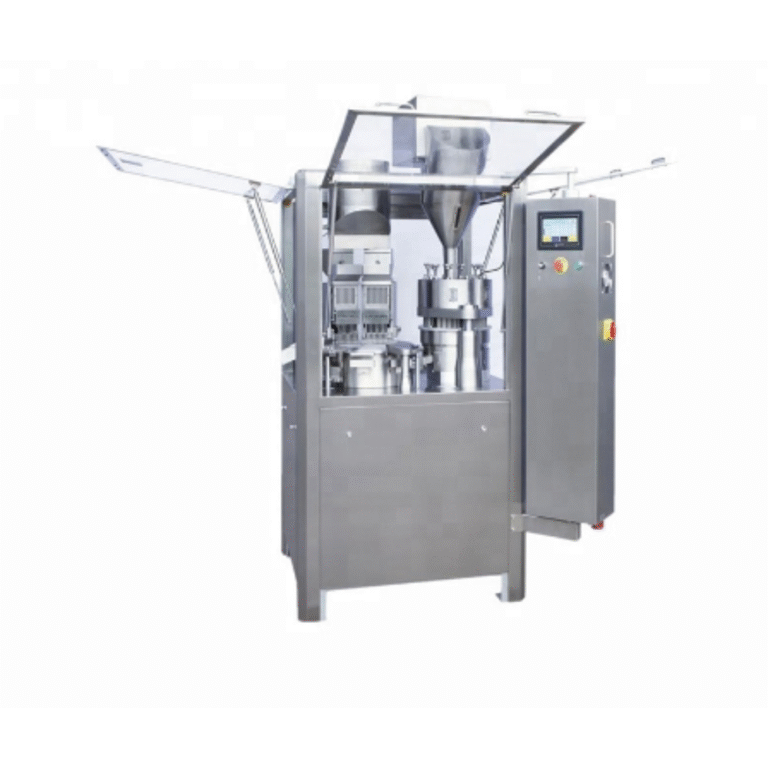

NJP-200/400 Fully Automatic Capsule Filling Machine is used to fill powder, grain and tablet. It adopts multi-bore dosing, intermittent motion and timing frequency conversion.
It is suitable for automatically completing capsule feeding, separating, filling, (waste capsule rejecting), closing, finished product ejecting for powder or tiny pill medicine in capsule. It is designed sophisticatedly by our factory according to the practice on domestic; it is fully accorded with the GMP standard.
It is warmly welcomed by the Medicine Graduate School, hospital, small-scale medicine factories and clinics upon occupying the market. Meanwhile, this type of machine replaced the Semi automatic capsule filling machine and won a good reputation with our reliable quality and reasonable price in domestic and aboard.
- Machine Features:
It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure to get a longer usage-life and precision of machine.
The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
It is controlled by the computer, has a step less timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
The multi-bore dosing brings a precision dosage (it is controlled around ±3.5%); The capsule qualified rate is higher than 99%.It can be filled with the Chinese traditional medicine and the Western medicine.
It has a protector equipment for the operator and the machine. It has automatic pause equipment when it is lack of the material. It has a steady and safe working, therefore it is the best choice for the hard capsule factories.
- TechnicalParameters:
| Machine Model | NJP-200 | NJP-400 |
| Output(max.) | 200 granule/min | 400 granule/min |
| No. of segment bores | 2 | 3 |
| Suitable for capsule | 00#~4# | 00#~4# |
| Total Power | 3.32 kw | 3.32 kw |
| Overall Weight | 700 kg | 700 kg |
| Overall Dimension | 720x680x1700mm | 750x680x1700mm |
