How to Choose an Alu Alu Blister Packing Machine: 7 Factors Pharmaceutical Engineers Must Evaluate

Cold-form alu alu blister packaging protects moisture-sensitive APIs with WVTR < 0.5 g/m²/day — a standard no thermoformed PVC can match.

Factor 1: Forming Depth Range — The Non-Negotiable Specification

Forming station on a cold-form alu alu blister machine: cavity depth uniformity across the full plate width is critical for foil integrity.

Forming Depth Specification Matrix

Common Failure Modes & Forester’s Fix

• 🔴 Symptom: Visible white stress marks (foil whitening) on formed cavities, product shifting inside pack.
  ⚙️ Root Cause: Forming depth set 1.5–2 mm shallower than product height; foil laminate overstretched at cavity shoulder.
  🔧 Forester’s Fix: Increase forming depth in 0.5 mm increments, verify cavity wall thickness ≥ 60 µm post-form using ultrasonic gauge. Re-run WVTR challenge test per ASTM F2338.
• 🔴 Symptom: Cavity depth non-uniformity > ±0.5 mm across forming plate width, reported during IQ verification.
  ⚙️ Root Cause: Forming station guide rails worn or forming plate parallelism out of tolerance by > 0.3 mm.
  🔧 Forester’s Fix: Laser-level forming plate, re-shim guide rails to < 0.1 mm parallelism. Re-validate with 3 consecutive forming trials at 100% speed.
• 🔴 Symptom: Foil crack at cavity base on soft-gel capsule line, generating reject rates > 3%.
  ⚙️ Root Cause: OPA/ALU/PVDC laminate gauge (200 µm) insufficient for 12 mm depth; material elongation limit exceeded.
  🔧 Forester’s Fix: Switch to 250 µm OPA/ALU/PVDC laminate, adjust forming force to 18–22 kN, run material qualification per ICH Q10 change control protocol.

Factor 2: Servo vs. Mechanical Drive System — The Accuracy Decision

Servo motor and precision cam indexer on a HIJ alu alu machine: film feed accuracy ±0.1 mm eliminates cavity misregistration.

Servo vs. Mechanical Drive: Technical Comparison

Common Failure Modes & Forester’s Fix

• 🔴 Symptom: Seal channel misaligned by > 1.5 mm from cavity edge; detected during seal integrity test per USP <1207>.
  ⚙️ Root Cause: Mechanical cam drive accumulating backlash > 0.8 mm after 5,000 hr operation.
  🔧 Forester’s Fix: Replace cam follower bearing; recalibrate film feed registration to < 0.3 mm. If recurrence within 500 hr, escalate to servo drive upgrade.
• 🔴 Symptom: Servo drive alarm “position deviation exceeded” at film feed axis during production, causing line stoppage.
  ⚙️ Root Cause: Film tension fluctuation > 12 N due to dancer roll bearing seizure, causing servo following error > 0.5 mm.
  🔧 Forester’s Fix: Replace dancer roll bearing (greased, C3 clearance); set servo position deviation alarm threshold to 0.8 mm with 200 ms delay filter to suppress transient alerts.

Factor 3: Changeover Time and Format Flexibility — The OEE Multiplier

Quick-release tooling on a HIJ cold-form blister machine enables format changeover in under 30 minutes, minimising OEE loss during multi-SKU campaigns.

Common Failure Modes & Forester’s Fix

• 🔴 Symptom: First 200 packs post-changeover rejected due to cavity fill misalignment; total changeover-related waste > 0.8% of batch.
  ⚙️ Root Cause: Forming die not fully seated after changeover; 0.3 mm gap in locating pin engagement causing lateral cavity shift.
  🔧 Forester’s Fix: Implement torque-verified (15 N·m) locking protocol for all forming die locating pins. Add a “tooling seated” proximity sensor interlock that prevents production start until all 4 pins confirm engagement.
• 🔴 Symptom: Recipe recall produces sealing temperature 8°C below target; seal strength fails peel test at < 6 N/15 mm.
  ⚙️ Root Cause: Sealing station thermocouple not re-zero-calibrated after tooling swap; recipe parameter applies absolute setpoint without thermal mass compensation.
  🔧 Forester’s Fix: Add a 5-minute sealing platen warm-up verification step (IR pyrometer measurement ±2°C of setpoint) to the changeover SOP before production release.

Factor 4: GMP Documentation Package — The Compliance Foundation

Minimum GMP Documentation Package Checklist

• ✅
  User Requirement Specification (URS): Supplier-signed acknowledgement with traceability matrix to DQ.
• ✅
  Design Qualification (DQ): Engineering drawings, P&ID, BOM with material certificates (SS316L contact parts).
• ✅
  FAT Protocol & Report: Executed at supplier facility with QP witness option; deviations logged and closed.
• ✅
  IQ/OQ/PQ Templates: Pre-authored in English with acceptance criteria, test methods, and responsible party fields.
• ✅
  21 CFR Part 11 Compliance Matrix: Audit trail, electronic signature, access control, and data backup evidence per FDA regulation.
• ✅
  Calibration Records: Temperature sensors (±1°C), pressure transducers (±0.5%), and position encoders (±0.1 mm) with NIST-traceable certificates.
• ✅
  Change Control Procedure: Documented process for post-qualification modifications per ICH Q10 pharmaceutical quality system.

Common Failure Modes & Forester’s Fix

• 🔴 Symptom: QP rejects IQ because sealing station thermocouple calibration certificate references a non-accredited lab.
  ⚙️ Root Cause: Supplier used internal calibration without ISO 17025-accredited traceability; calibration report missing NIST or PTB reference chain.
  🔧 Forester’s Fix: Require all instrument calibration certificates to reference an ISO 17025-accredited calibration body before FAT sign-off. HIJ provides NIST-traceable certificates as standard.
• 🔴 Symptom: 21 CFR Part 11 audit finds audit trail entries contain time-stamps without UTC synchronisation; entries differ by 47 minutes from site server.
  ⚙️ Root Cause: PLC real-time clock not configured to synchronise with site NTP server; no network time protocol integration in machine design.
  🔧 Forester’s Fix: Enable NTP synchronisation in PLC Ethernet configuration; verify clock drift < 5 seconds per month. Re-execute 21 CFR Part 11 audit trail test in OQ with 10-event sample.

Factor 5: After-Sales Support Infrastructure — The 2 AM Test

HIJ Machinery’s on-site engineer conducting post-installation training and SAT support at a pharmaceutical client facility. On-site deployment within 72 hours of critical failure is a contractual commitment.

After-Sales Support Evaluation Scorecard

Common Failure Modes & Forester’s Fix

• 🔴 Symptom: Sealing station heater cartridge fails at 03:00 during GMP audit validation batch; supplier technical hotline unanswered for 6 hours.
  ⚙️ Root Cause: Supplier has no 24/7 on-call engineering support; time zone gap of 12 hours between supplier and client site.
  🔧 Forester’s Fix: Pre-stock 2 spare heater cartridges (230V, 800W, M8 thread) on-site per HIJ’s recommended critical spares list. HIJ provides remote diagnostic access via VPN to PLC HMI within 4 hours — contact HIJ service & support.
• 🔴 Symptom: Servo drive fault code E.0b1 (overcurrent) appearing every 4–6 hours; line OEE drops below 65%.
  ⚙️ Root Cause: Servo drive output current limit set 20% below motor rated current; excessive deceleration ramp causing regenerative overcurrent during high-inertia film feed stop.
  🔧 Forester’s Fix: Increase deceleration ramp time from 80 ms to 150 ms in servo drive parameter P04.14; verify regenerative braking resistor wattage ≥ 200W. HIJ can perform this parameter adjustment via remote VPN session.

Factor 6: Total Cost of Ownership — Not Just the Purchase Price

10-Year TCO Model: Budget vs. GMP-Grade Alu Alu Machine

Common Failure Modes & Forester’s Fix

• 🔴 Symptom: Year 3 audit finds machine requires complete requalification after servo drive module replacement; cost estimate USD 95,000 for IQ/OQ/PQ re-run.
  ⚙️ Root Cause: Change control SOP not established at purchase; any component replacement triggers full revalidation without a supplier-supported change impact assessment.
  🔧 Forester’s Fix: Establish a documented change control procedure at SAT stage, defining “like-for-like” replacements that require only OQ re-execution (not full IQ/OQ/PQ). HIJ provides a pre-approved change control template as part of the standard documentation package.
• 🔴 Symptom: Foil material cost 22% higher than budgeted due to excessive trim waste from poor cavity registration.
  ⚙️ Root Cause: Film feed accuracy ±0.9 mm causing 8–12 mm over-travel in foil advance; extra material consumed per cycle accumulates to 18% waste over annual production volume.
  🔧 Forester’s Fix: Upgrade film registration system to servo encoder feedback; target ±0.2 mm accuracy. Expected material waste reduction: 14–16% on a 200-million-pack annual line.

Factor 7: Regulatory Compliance Capability — FDA, EU GMP & WHO Markets

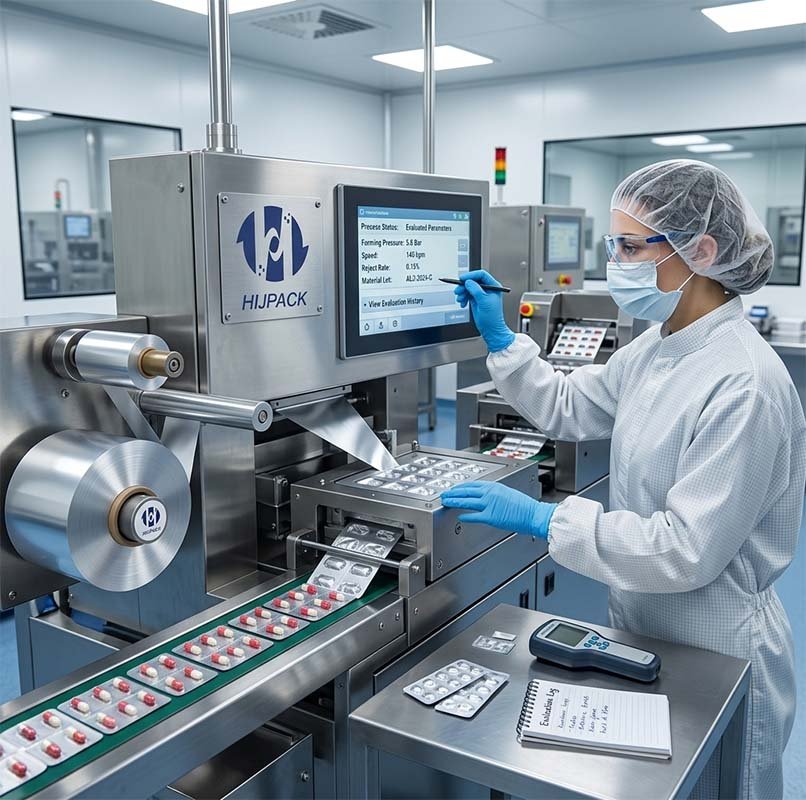

A cGMP packaging line integration audit in progress: regulatory compliance capability must be verified against 21 CFR Part 211, EU GMP Annex 1, and WHO TRS 992 before purchase order.

Regulatory Compliance Matrix by Market

Common Failure Modes & Forester’s Fix

• 🔴 Symptom: FDA Pre-Approval Inspection (PAI) raises 483 observation: “Audit trail records for blister machine sealing parameters cannot be retrieved for Batch XYZ-2024-003.”
  ⚙️ Root Cause: PLC data logging set to overwrite circular buffer after 500 events; batch had 620 sealing events exceeding buffer capacity; oldest 120 records permanently lost.
  🔧 Forester’s Fix: Configure PLC to export batch event logs to external SQL database at batch completion; set buffer ≥ 10,000 events minimum. Retain batch records for minimum 1 year post-expiry per 21 CFR 211.68.
• 🔴 Symptom: EU GMP inspection flags sealing station contact surface Ra = 1.6 µm; inspector requests cleaning validation evidence for non-compliant surface finish.
  ⚙️ Root Cause: Supplier used standard milled SS304 sealing plates instead of electro-polished SS316L; surface finish non-compliant with EU GMP Annex 1 cleanability requirements.
  🔧 Forester’s Fix: Replace sealing plates with electro-polished SS316L (Ra ≤ 0.8 µm); issue material change control record. HIJ supplies SS316L contact surfaces as standard on all GMP-grade alu alu machines.

The Evaluation Checklist: 7-Step HowTo for Alu Alu Blister Machine Selection

Use this structured evaluation protocol before issuing any purchase order or RFQ for a cold-form blister packaging machine. Each step generates documented evidence your quality team and qualified person can reference during equipment selection review.

1. 1
   Define Product Portfolio RequirementsList all current and pipeline solid dosage forms with height, width, length, and bulk density. Determine maximum required forming depth (target: 12 mm for broadest coverage). Identify any products with special moisture sensitivity requiring WVTR < 0.5 g/m²/day barrier — these mandatorily require alu alu over PVC/PVDC.

2. 2
   Specify Drive System ArchitectureConfirm whether servo or mechanical drive is required based on SKU count, required film feed accuracy (±0.1 mm for servo), and 21 CFR Part 11 audit trail requirements. Multi-SKU lines (> 5 formats/quarter) should specify servo as mandatory.

3. 3
   Set Changeover Time KPICalculate current changeover-related OEE loss (hours/year). Set maximum acceptable changeover time (≤ 30 min target). Specify minimum number of stored product recipes (≥ 10) and require demonstration during FAT with timed changeover witnessed by QP.

4. 4
   Audit the GMP Documentation PackageRequest a sample IQ protocol and DQ traceability matrix before purchase. Verify EU GMP Annex 15 compliance, 21 CFR Part 11 matrix, and NIST-traceable calibration certificates. Reject any supplier who cannot provide these documents pre-PO.

5. 5
   Benchmark After-Sales Support SLARequest a written Service Level Agreement covering remote response time (≤ 4 hr), spare parts delivery to your region (≤ 48 hr), and on-site engineer deployment (≤ 72 hr). Verify regional parts inventory through reference checks with existing clients in your geography.

6. 6
   Build a 10-Year TCO ModelExtend beyond purchase price to include: qualification costs, estimated unplanned downtime (benchmark: 120 hr/yr budget machine vs. 35 hr/yr GMP-grade), preventive maintenance parts cost schedule, and revalidation cost scenarios. Use this model to compare 3 suppliers on TCO, not purchase price.

7. 7
   Verify Multi-Jurisdiction Regulatory ComplianceMap target export markets to required standards (FDA 21 CFR, EU GMP Annex 1, WHO TRS 992). Confirm machine design meets all simultaneously. Request CE Declaration of Conformity, ISO 13849-1 safety assessment, and contact material certificates (SS316L, Ra ≤ 0.8 µm). Visit the HIJ alu alu blister packing machine specifications page for full compliance documentation overview.

HIJ DPH-300 Alu Alu Blister Packing Machine: servo-driven, forming depth up to 12 mm, 21 CFR Part 11 compliant, with full GMP documentation package. Explore the complete alu alu blister packing machine specifications.

Completing Your Packaging Line: Integrated Equipment to Consider

An alu alu blister machine operates as one station in a complete pharmaceutical packaging line. Regulatory inspectors evaluate the entire line as an integrated system under ICH Q10. Matching ancillary equipment to the same GMP documentation standard prevents validation bottlenecks downstream. Explore HIJ’s integrated line components:

Frequently Asked Questions: Choosing an Alu Alu Blister Packing Machine
